PIKE ARMS® TAKEDOWN STYLE BARREL HARDWARE BUNDLE

In order to complete a Pike Arms® Takedown Style Barrel, you will need the stripped barrel as well as the barrel hardware. The Pike Arms® Takedown Barrels are sold without the associated takedown barrel hardware so if you already have the required additional parts, you are not forced to purchase them. However, if you need the barrel hardware or don't want to take it off of a Ruger factory barrel, the barrel hardware parts are available individually per each corresponding part number below or you can purchase all of the required barrel hardware that is specific to a takedown style barrel in this money saving bundle.

The follow parts are included in this Pike Arms® Elite22TD™ Takedown Style Barrel Hardware Bundle:

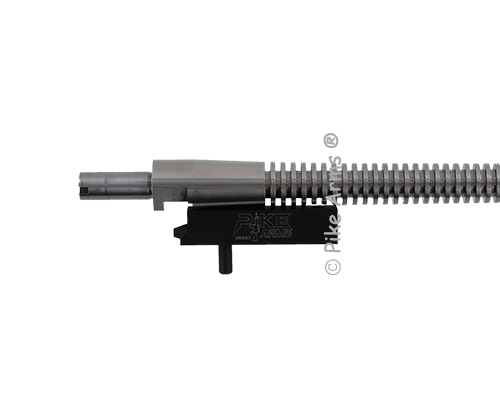

#08557 - Pike Arms® Takedown Barrel Locking Block

#08619 - Pike Arms® Takedown Barrel Locking Block Screws - Pair

#08615 - Pike Arms® Takedown Barrel Lock

#08618 - Pike Arms® Takedown Barrel Lock Spring

#08616 - Pike Arms® Takedown Barrel Actuator

#08617 - Pike Arms® Takedown Barrel Actuator Retainer

Each part is billet CNC machined then professionally either hard anodized or blued to ensure exceptional durability and reliabily and are ready to be installed on your Pike Arms® Takedown barrel. None of the parts are cast or MIM injection molded.

NOTE 1: The parts in this Pike Arms BARREL HARDWARE BUNDLE are specifically for the barrel and do NOT include hardware that is specific to and attached to the receiver itself. All parts related to the takedown barrel assembly that are attached to the barrel when the barrel is removed are included in this bundle. Parts that are attached to the receiver when the barrel is removed from the receiver are available separately (Part #08626) and are NOT included with this Pike Arms Takedown Style Receiver BARREL HARDWARE Bundle.

Review This Product

Rating

Bad
1
2
3
4
5
Good

First Name

State

Review

Are you human?

INSTALLATION INSTRUCTIONS

1) Attach the barrel locking block (08557) oriented with the open end toward the chamber end of the barrel, with the supplied screws (08619).

2) Insert the barrel lock spring spring (08618) into the open end of the block.

3) Insert the actuator retainer (08617) into the end of the barrel lock (08615), insert this assembly into the locking block (08557) with the chisel point of the lock facing the chamber end of the barrel.

4) Compress the lock, retainer, and spring into the locking block until the actuator (08616) can be inserted through the slot and into the barrel lock. The actuator should be held in place by the retainer when fully inserted. NOTE: often one side of the hole in the lock is tighter than the other, it may be helpful to check the fit of the actuator in the barrel lock prior to assembly and orient the lock accordingly.

5) To disassemble; pull the retainer back with a pick or small screw driver to release the actuator. At the same time pull the actuator out of the barrel lock/locking block assembly. The lock, retainer and spring can now be removed to gain access to the screws.

PROP 65 WARNING:

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
